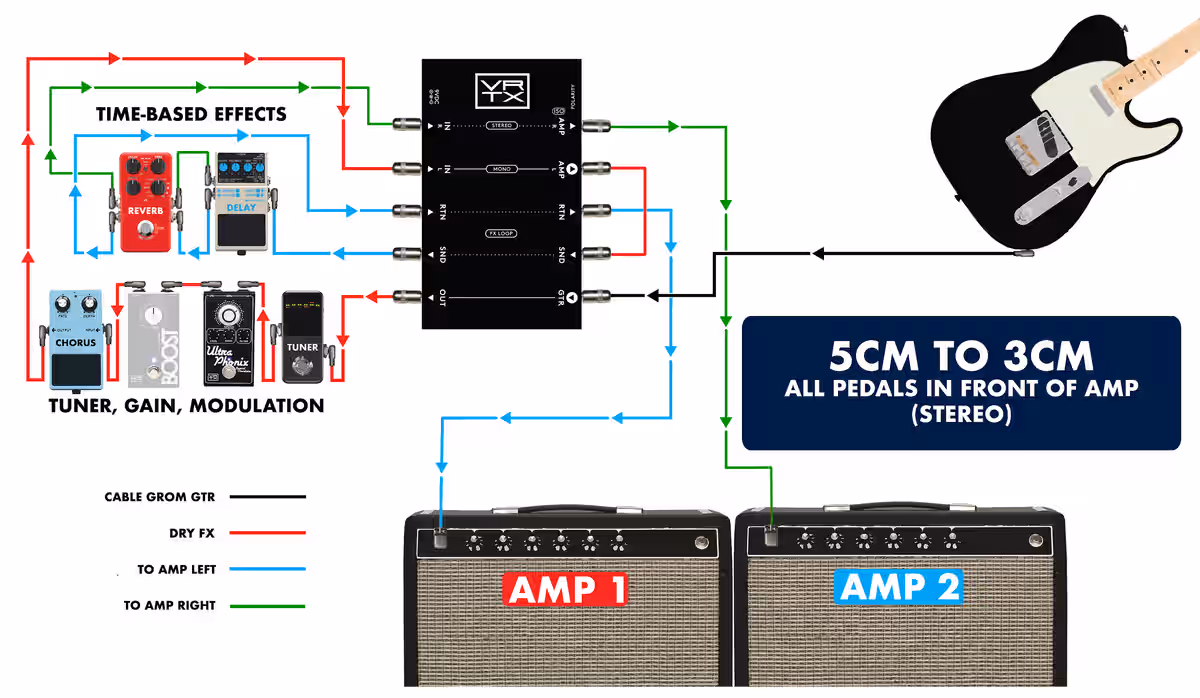

SIGNAL PATH:

Guitar > (GTR) > (OUT) > Tuner > Gain Pedals > Modulation Pedals >

Delay > Reverb > (IN L) > (AMP L) > Amp Input

SIGNAL PATH:

Guitar > (GTR) > (OUT) > Tuner > OD > Boost >

Modulation > Delay > Reverb > (IN L) >

(AMP L) > AMP 1 INPUT

(AMP R) > AMP 2 INPUT

SIGNAL PATH:

Guitar > (GTR) > (OUT) > Tuner > OD > Boost >

Modulation > Delay [stereo] > Reverb [stereo]

FROM REVERB OUTPUT L: (IN L) > (AMP L) > AMP 1 INPUT

FROM REVERB OUTPUT R: (IN R) > (AMP R) > AMP 2 INPUT

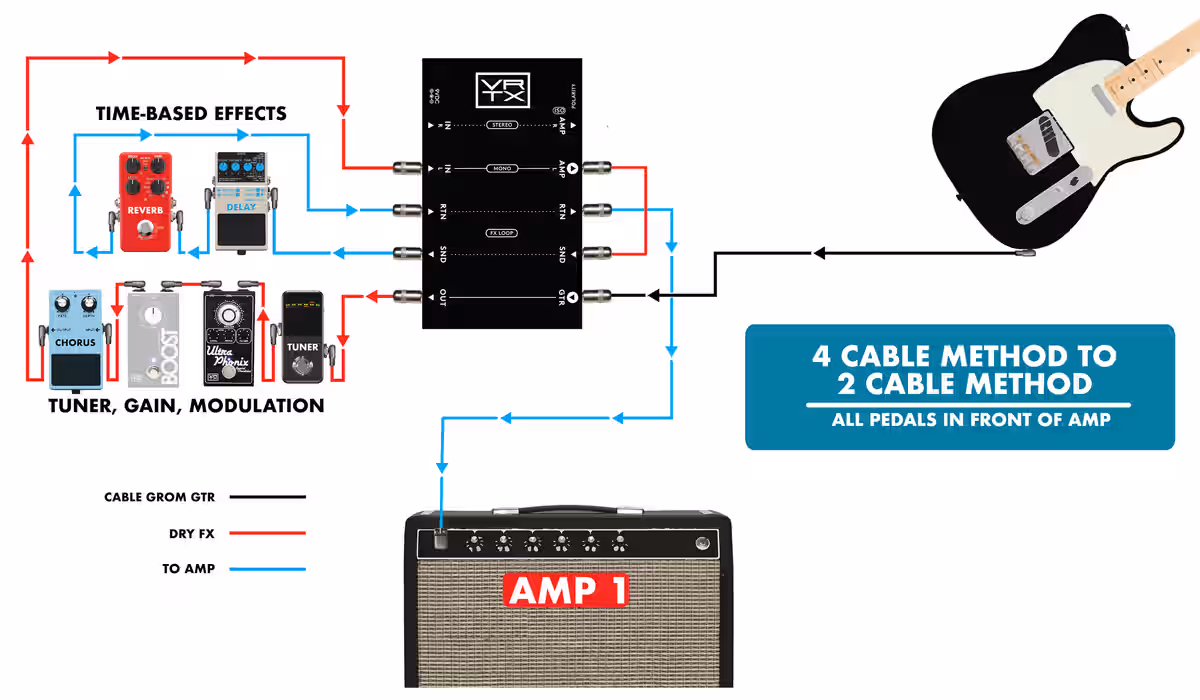

SIGNAL PATH:

Guitar > (GTR) > (OUT) > Tuner > OD > Boost >

Modulation > (IN L) > AMP INPUT

FROM AMP FX LOOP SEND > (SND) > Delay >

Reverb > (RTN) > AMP FX LOOP RTN

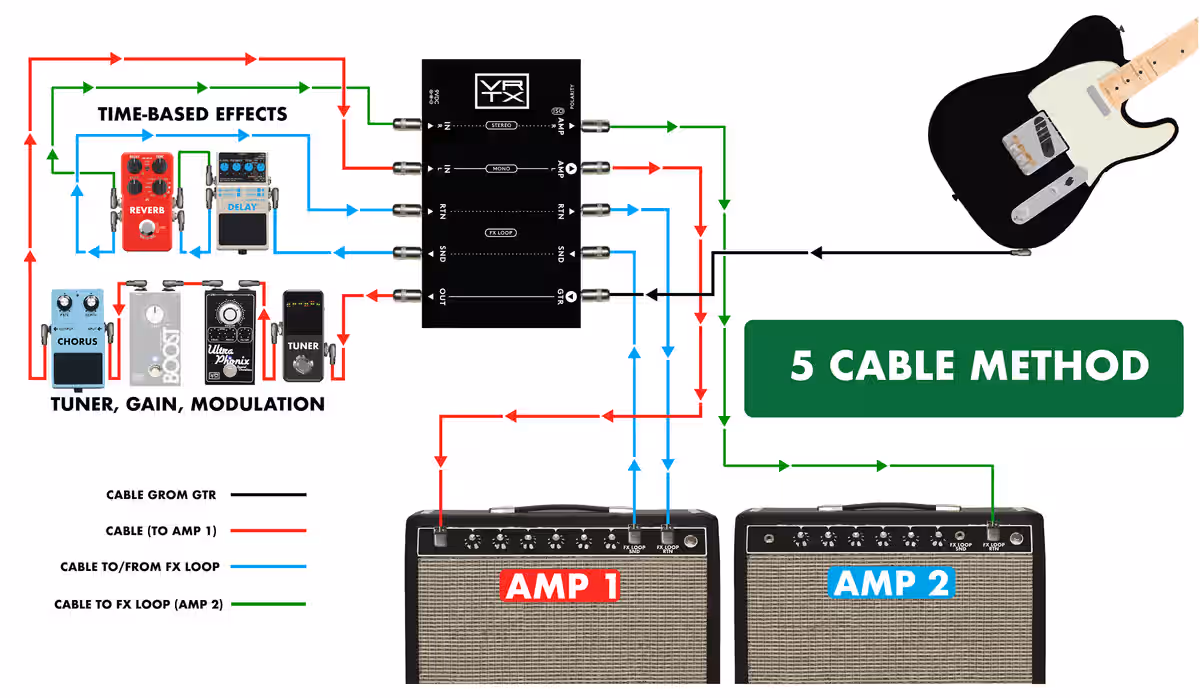

SIGNAL PATH:

Guitar > (GTR) > (OUT) > Tuner > OD > Boost > Modulation >

(IN L) > (AMP L) > AMP 1 INPUT AMP 1 FX LOOP SEND (SND) >

(SND) > Delay [stereo] > Reverb [stereo]

FROM REVERB OUTPUT L > (RTN) > (RTN) > AMP 1 FX LOOP RETURN

FROM REVERB OUTPUT R > (IN R) > (AMP R) > AMP 2 FX LOOP RETURN

SIGNAL PATH:

Guitar > (GTR) > (OUT) > Tuner > OD > Boost >

Modulation > (RTN) > (RTN) > Volume Pedal Input > Volume Pedal Output >

(SND) > (SND) > Delay [mono or stereo] > Reverb [mono or stereo]

FROM REVERB OUTPUT L > (IN L) > (AMP L) > AMP 1 INPUT [for mono]

FROM REVERB OUTPUT R > (IN R) > (AMP R) > AMP 2 INPUT

SIGNAL PATH:

Guitar > (GTR) > (OUT) > Tuner > OD > Boost > Modulation >

(IN L) > (AMP L) > INPUT OF DRY AMP

LINE OUT BOX [LO] SIGNAL PATH: DRY AMP SPEAKER or CAB >

LO INPUT [speaker cable] >

LO SPEAKER THRU > DRY AMP SPEAKER INPUT [speaker cable]

FROM [LO] OUTPUT: (SND) > Delay > Reverb >

(RTN) > WET AMP FX LOOP RTN

SIGNAL PATH:

Guitar > (GTR) > (OUT) > Tuner > OD > Boost >

Modulation > (IN L) > (AMP L) > INPUT OF DRY AMP

LINE OUT BOX [LO] SIGNAL PATH: DRY AMP SPEAKER or CAB >

LO INPUT [speaker cable] >

LO SPEAKER THRU > DRY AMP SPEAKER INPUT [speaker cable]

FROM [LO] OUTPUT: (SND) > Delay [stereo L] >

Reverb [stereo L] > (RTN) > WET AMP L FX LOOP RTN

FROM REVERB STEREO OUTPUT R: (IN R) >

(AMP R) > WET AMP R FX LOOP RTN

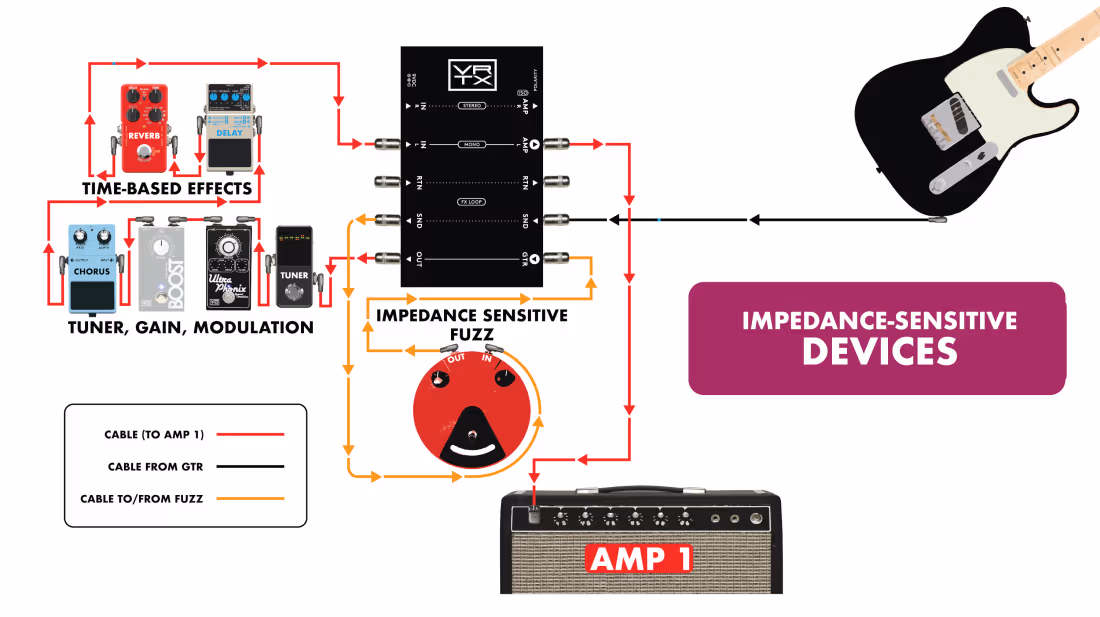

SIGNAL PATH:

Guitar > (SND) > IMPEDANCE SENSITIVE PEDAL > (GTR) > (OUT)

FROM (OUT): Tuner > OD > Boost > Modulation >

Delay > Reverb > (IN L) > (AMP L) > INPUT OF AMP 1

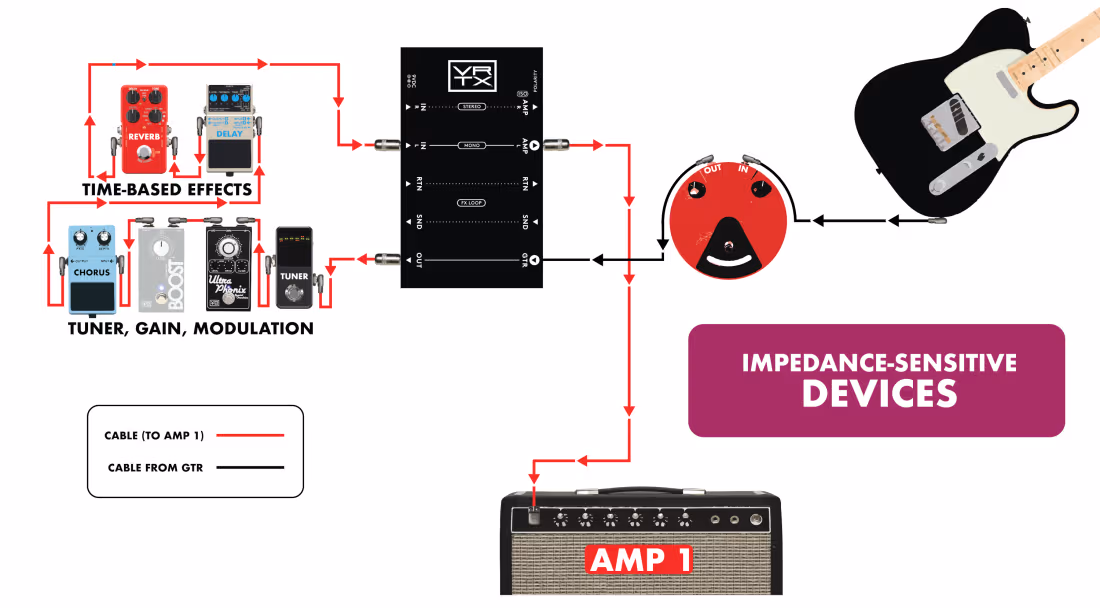

SIGNAL PATH:

Guitar > IMPEDANCE-SENSITIVE DEVICE > (GTR) > (OUT) > TUNER > OD >

Boost > Modulation > Delay > Reverb > (IN L) > (AMP L) > INPUT OF AMP 1

SIGNAL PATH:

Guitar > (GTR) > (OUT) [Mono TS Y-Cable]

Y-Cable Side 1 > Tuner Input

Y-Cable Side 2 > OD > Boost > Modulation >

Delay [mono or stereo] > Reverb [mono or stereo]

FROM REVERB OUTPUT L > (IN L) > (AMP L) > AMP 1 INPUT [for mono]

FROM REVERB OUTPUT R > (IN R) > (AMP R) > AMP 2 INPUT

SIGNAL PATH:

Guitar > (GTR) > (OUT) > Tuner > OD > Boost >

Modulation > (RTN) > (RTN) >

Stereo Chorus [mono input] > Stereo Chorus [stereo output] >

(SND) [Dual TS to TRS Insert Cable] >

(SND) [TRS to Dual TS Insert Cable] > Delay [stereo] > Reverb [stereo]

FROM REVERB OUTPUT L > (IN L) > (AMP L) > AMP 1 INPUT [for mono]

FROM REVERB OUTPUT R > (IN R) > (AMP R) > AMP 2 INPUT

SIGNAL PATH:

Guitar > (GTR)> (OUT) > Tuner > OD > Boost >

Modulation > (IN L) > (AMP L) > (SND) > (SND) > Delay >

Reverb > (RTN) > (RTN) > AMP 1 INPUT

SIGNAL PATH:

Guitar > (GTR) > (OUT) > Tuner > OD > Boost > Modulation > (IN L) >

(AMP L) > (SND) > (SND) > Delay [stereo] > Reverb [stereo]

FROM REVERB OUTPUT L> (RTN) > (RTN) > AMP 1 INPUT

FROM REVERB OUTPUT R > (IN R) > (AMP R) > AMP 2 INPUT

SIGNAL PATH:

Guitar > Tuner > OD > Boost > Modulation >

(IN L) > (AMP L) > AMP 1 INPUT

AMP 1 FX LOOP SEND > (GTR) > (OUT) > Delay >

Reverb > (RTN) > (RTN) > AMP 1 FX LOOP RETURN

AMP 1 FOOTSWITCH OUTPUT (TS or TRS) >

SND > SND > AMP 1 FOOTSWITCH INPUT
