DIY Mono Dual Buffer / Splitter Pedalboard Interface

MONDAY, NOVEMBER 9, 2020

DIY Mono Dual Buffer / Splitter Pedalboard Interface

The diagrams, templates, and materials listed correspond to this video (shown below), where I show all you DIYers
how to build a Pedalboard Buffer Interface system just like the pros!  All of the info you'll need to design your own
customized buffer with options for mono, stereo, wet/dry, split mono, effects loops or 4 cable method, audition
loops, tuner outs, and more are all available as you scroll down the page.




MONO DUAL BUFFER / SPLITTER
The Mono Dual Buffer is ideal for any MONO pedalboard system running in front of an amplifier.
The Splitter Out provides a buffered feed for a second MONO amplifier. You can now use up to
two amplifiers that can provide a BIGGER mono sound and help fill in your tonal EQ and body.
*NOTE: Some multi-amp set-ups may require galvanic isolation and/or polarity reversal on one amp.  We suggest the Lehle
P Split as a solution, placed as close to the amplifier as possible for the transformer isolation, and the polarity (phase) controls.

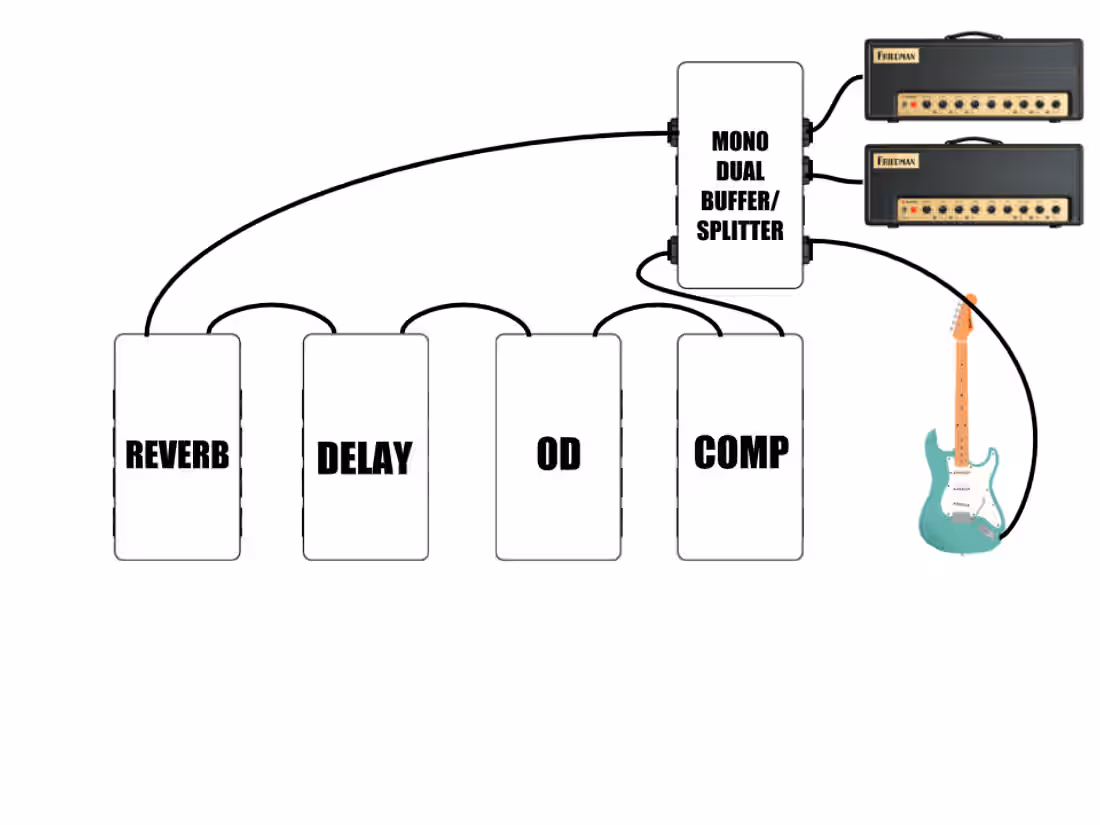

Application Example, Block Diagram

Drilling Template (Hammond 1590B Enclosure)
Download Diagram Here *Print at 100% Scale*

Wiring Diagram (shown from inside enclosure)
Download Diagram Here

Bill of Materials:
1x Hammond 1590B Enclosure:
https://amzn.to/32fEzlz
2x Creation Audio Labs Buffer PCB (select Ai1 model, 1 Meg Ohm, Nylon ISO Jack, Unity Gain):
2x Neutrik NRJ6HF 1/4" TRS Jack(s):
https://bit.ly/34XhRQW
2x Neutrik NRJ 1/4" Nut(s):
https://bit.ly/3kWW7dv
1x Switchcraft Tip Shunt 1/4" Jack(s):
https://amzn.to/3k2V2iU
1x DC Power Jack:
https://bit.ly/369WvPA
3x Keystone Hole Plugs:
https://bit.ly/32yacXR
1x Hook Up Wire:
https://amzn.to/2IcuY7G
